CSG01n/Pt

CSG01n/Pt/15

15 separated chips

€490

– +

Аdd to cart

Product Description

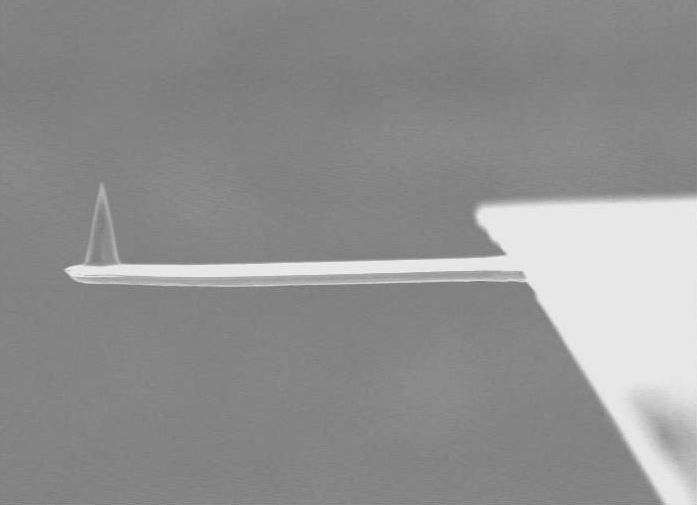

Contact Conductive Probes CSG01n/Pt series with Pt tip coating
Resonant frequency 7-14 kHz, force constant 0,01-0.06 N/m.
Cantilever has Au reflective side coating to increase laser signal.

Probes are packed in boxes with 15 and 50 pieces.

General Features

Material	Single Crystal Silicon
Chip size	3.6×1.6×0.4mm
Reflective side coating	Au
Tip coating	Pt
Tip curvature radius	~ 40 nm

Special Features

Cantilever series	Cantilever length, L±5µm	Cantilever width, W±5µm	Cantilever thickness, T±0.3µm	Resonant frequency, kHz			Force constant, N/m
Cantilever series	Cantilever length, L±5µm	Cantilever width, W±5µm	Cantilever thickness, T±0.3µm	min	typical	max	min	typical	max
CSG01n/Pt	350	35	1.0	7	10	14	0.01	0.03	0.06
